 Back All products in this series
VdS
Information

Your chosen product may vary from the image shown depending on the safe and fittings you have selected.

Fire protection
120
Minutes

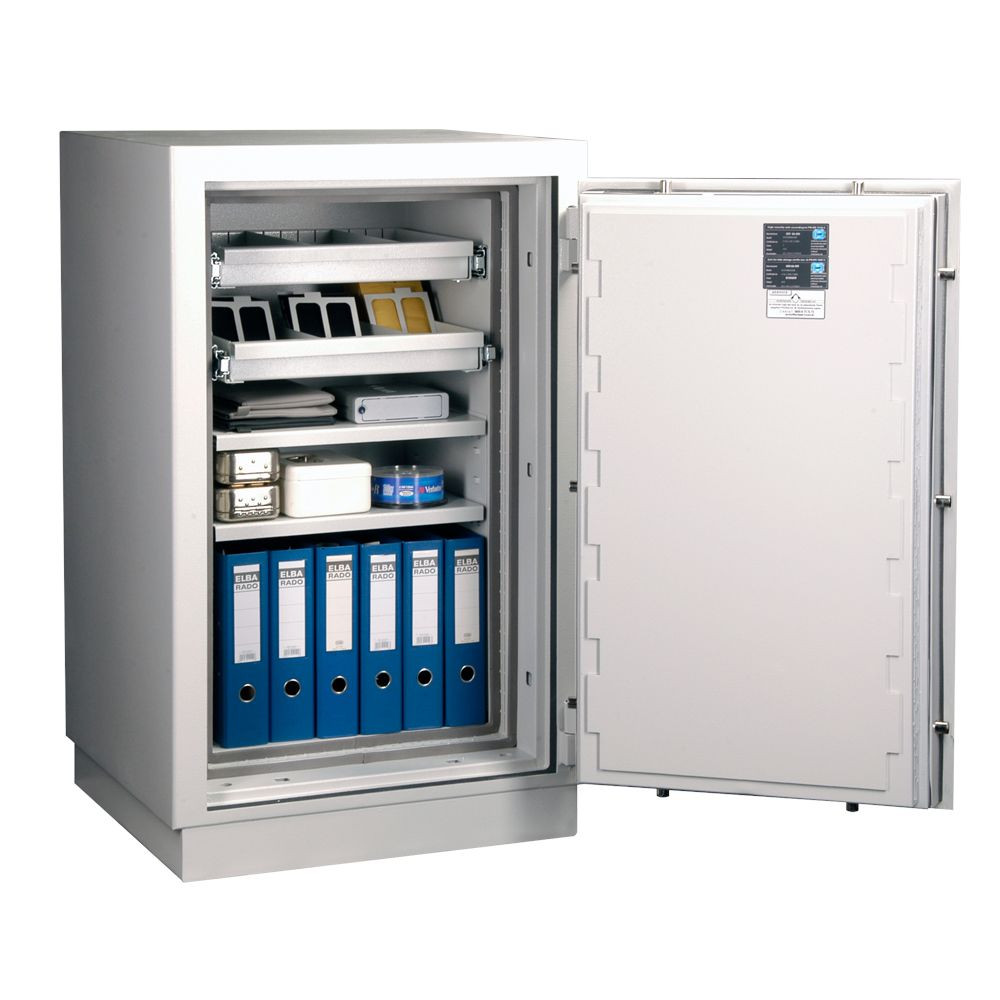

HTFI 190-01 Data media safe
HTFI 190-01 Data media safe

HTFI 190-01 Data media safe

Data safe

Overall dimensions: 1143 × 714 × 662 mm
Security level classification: Resistance grade I
acc. to EN 1143-1
Insurance cover (commercial use): €20,000.00
Fire protection: 120 Min.

Information on the lock types

Thank you for your enquiry!

Please leave your phone number for possible questions.

Kind regards
Yours HARTMANN TRESORE-Team

Product details HTFI 190-01
Overall dimensions 1143 × 714 × 662 mm
Internal dimensions 887 × 493 × 388 mm
Weight 433 kg
Volume 170 l
Door thickness 173 mm
Door opening angle 180 °
Protruding hinges/door fittings 60 mm
Door hinge DIN right
Anti-burglary protection standard EN 1143-1
Security level classification Resistance grade I
acc. to EN 1143-1
Certification body VdS
Insurance cover (commercial use) €20,000.00
Lock Double-bit lock with 2 keys, 145 mm
Type of lock Double bit
Lacquering/Colour RAL 7035 Light grey
Pre-drilled floor anchors Yes
Shelves 2
Base height 85 mm
Fire protection 120 Min.
Fire safety class S 120 DIS
Fire protection standard EN 1047-1
Details on the corpus Multi-walled corpus and door
Lock features locking mechanism on all sides; locking bolts on all sides
HTFI 190 – series
Select the version you would like
Item no Overall dimensions Weight
  HTFI 190-01 1143 × 714 × 662 mm 433 kg
