 Back All products in this series
VdS
Information

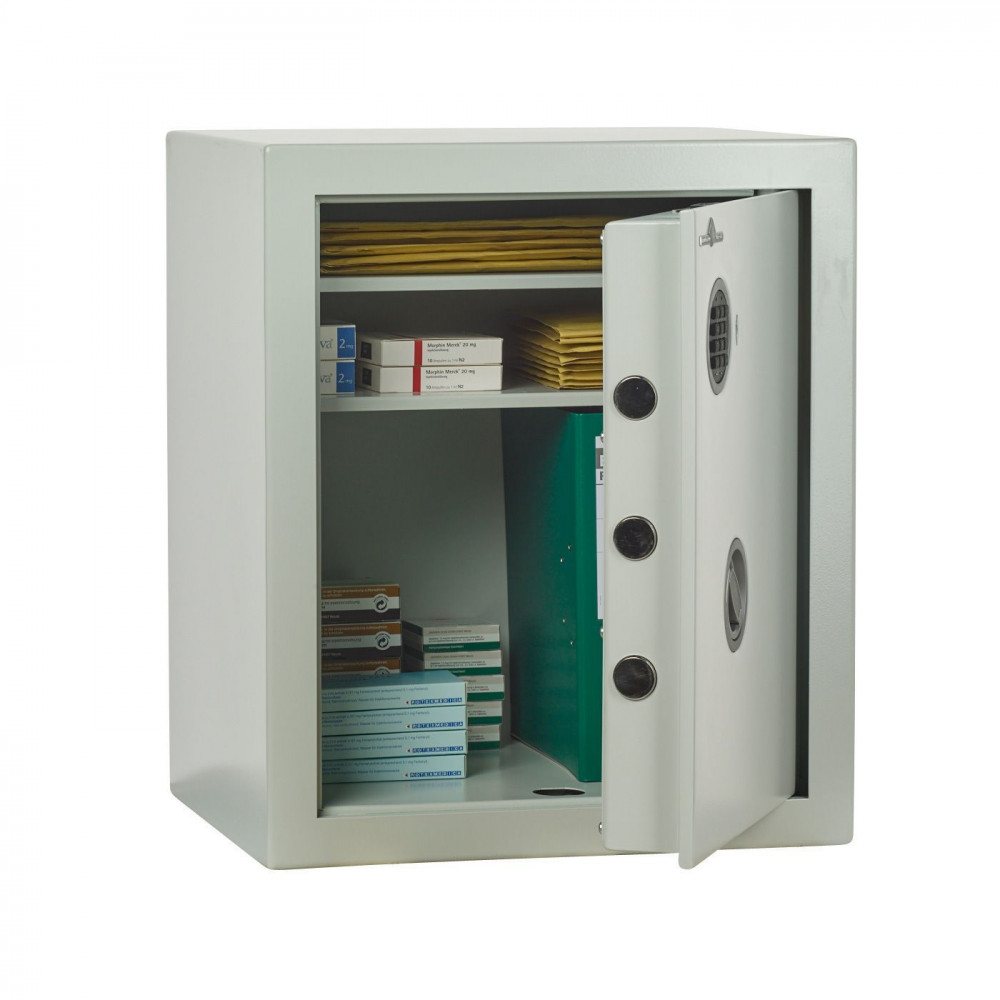

Your chosen product may vary from the image shown depending on the safe and fittings you have selected.

    F 104-BTM
    F 104-03 BTM-Tresor

    F 104-03 BTM-Tresor

    Overall dimensions: 606 × 516 × 430 mm
    Folder: 5
    Security level classification: Resistance grade I
    acc. to EN 1143-1
    Insurance cover (commercial use): €20,000.00

    Information on the lock types

    Thank you for your enquiry!

    Please leave your phone number for possible questions.

    Kind regards
    Yours HARTMANN TRESORE-Team

    Product details F 104-03-BTM
    Overall dimensions 606 × 516 × 430 mm
    Internal dimensions 506 × 400 × 295 mm
    Weight 118 kg
    Volume 60 l
    Folder 5
    Door hinge DIN right
    Door thickness 80 mm
    Door leaf thickness 12 mm
    Door opening angle 90 °
    Door clearance dimensions (HxW) 506 × 310 mm
    Anti-burglary protection standard EN 1143-1
    Security level classification Resistance grade I
    acc. to EN 1143-1
    Certification body VdS
    Insurance cover (commercial use) €20,000.00
    Lock Doppelbart-Sicherheitsschloss VdS Klasse I (2 Schlüssel)
    Lacquering/Colour RAL 7035 Lichtgrau Struktur
    Pre-drilled floor anchors Yes
    Details on the corpus dreiwandig mit integrierten Stegprofilarmierungen
    Lock features Dreiseitige Bolzenverriegelung mit Ø 35mm Riegelbolzen, Hintergreiferprofil an der Bandseite
    F 104-BTM – series
    Select the version you would like
    Item no Overall dimensions Weight folder
      F 104-03-BTM 606 × 516 × 430 mm 118 kg 5
      F 104-05-BTM 806 × 516 × 430 mm 156 kg 10
