VdS
Information

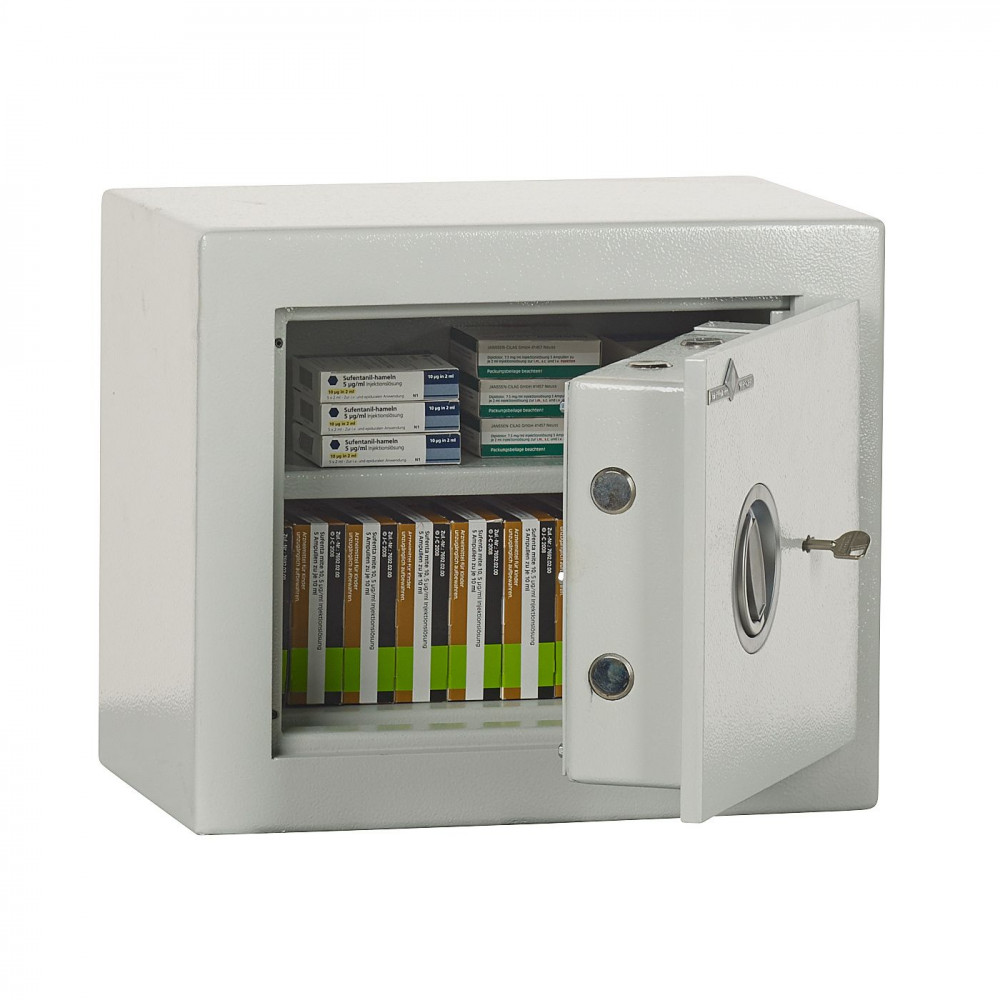

Your chosen product may vary from the image shown depending on the safe and fittings you have selected.

    F 103-BTM
    F 103-01 BTM-Tresor

    F 103-01 BTM-Tresor

    Overall dimensions: 336 × 396 × 250 mm
    Security level classification: Resistance grade I
    acc. to EN 1143-1
    Insurance cover (commercial use): €20,000.00

    Information on the lock types

    Thank you for your enquiry!

    Please leave your phone number for possible questions.

    Kind regards
    Yours HARTMANN TRESORE-Team

    Product details F 103-01-BTM
    Overall dimensions 336 × 396 × 250 mm
    Internal dimensions 245 × 312 × 131 mm
    Weight 62 kg
    Volume 10 l
    Shelves 1
    Door hinge DIN right
    Door thickness 84 mm
    Door leaf thickness 12 mm
    Door opening angle 90 °
    Door clearance dimensions (HxW) 230 × 252 mm
    Anti-burglary protection standard EN 1143-1
    Security level classification Resistance grade I
    acc. to EN 1143-1
    Certification body VdS
    Insurance cover (commercial use) €20,000.00
    Lock Doppelbarthochsicherheitsschloss (inkl. 2 Schlüssel)
    Lacquering/Colour RAL 7035 Lichtgrau
    Pre-drilled floor anchors Yes
    Including anchoring material Yes
    Details on the corpus Allseitig mehrwandiger Korpus
    Lock features allseitig über Riegelwerk. Zusätzlich gesichert durch innenliegende Verschwindscharniere
    F 103-BTM – series
    Select the version you would like
    Item no Overall dimensions Weight folder
      F 103-01-BTM 336 × 396 × 250 mm 62 kg
      F 103-02-BTM 336 × 496 × 300 mm 82 kg
      F 103-03-BTM 336 × 496 × 410 mm 95 kg 3
      F 103-04-BTM 436 × 496 × 410 mm 120 kg 5
      F 103-05-BTM 536 × 496 × 410 mm 130 kg 5
      F 103-06-BTM 636 × 496 × 410 mm 148 kg 5
      F 103-07-BTM 736 × 496 × 410 mm 168 kg 10
      F 103-08-BTM 836 × 496 × 410 mm 184 kg 10
