ECB-S
Information

Your chosen product may vary from the image shown depending on the safe and fittings you have selected.

Key hooks
160
HTSK 1000-03 Schlüssel-Kombitresor
HTSK 1000-03 Schlüssel-Kombitresor
HTSK 1000-03 Schlüssel-Kombitresor
HTSK 1000-03 Schlüssel-Kombitresor

HTSK 1000-03 Schlüssel-Kombitresor

Schlüssel-Kombitresor


Overall dimensions: 400 × 420 × 420 mm
Key hooks: 160
Security level classification: Resistance grade I
acc. to EN 1143-1
Insurance cover (commercial use): €20,000.00


Thank you for your enquiry!

Please leave your phone number for possible questions.

Kind regards
Yours HARTMANN TRESORE-Team

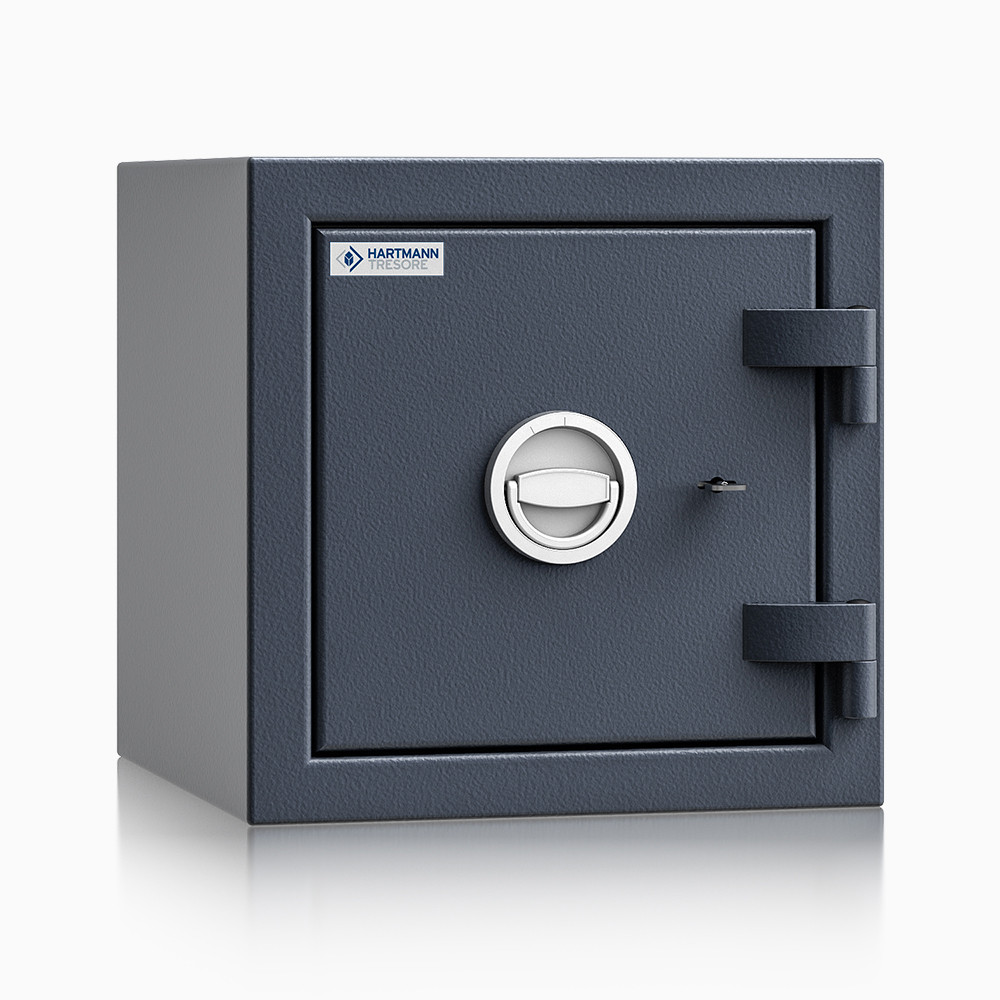

Product details HTSK1000-03
Overall dimensions 400 × 420 × 420 mm
Internal dimensions 350 × 361 × 307 mm
Weight 67 kg
Volume 38 l

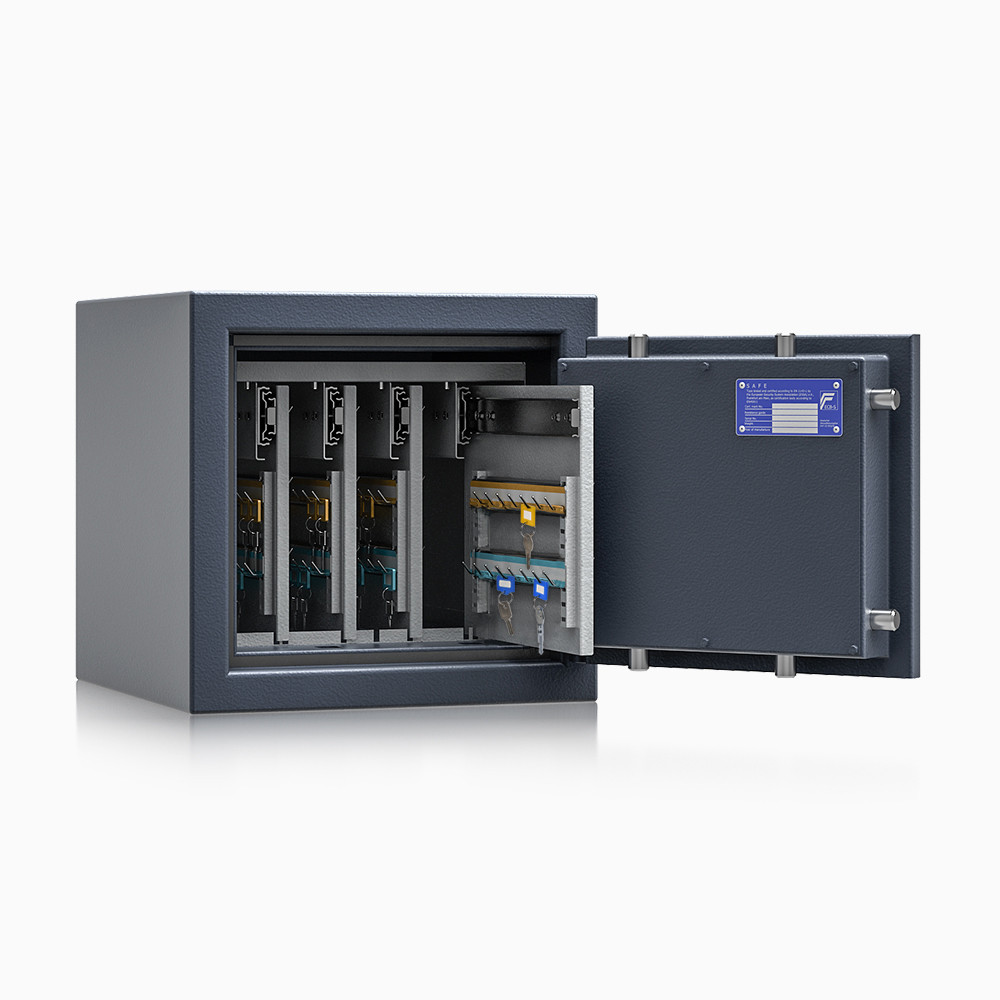

Interior fittings - 160 Haken insgesamt - 20 Hakenleisten mit 8 Haken pro Leiste - mit 4 ausziehbaren Tafeln - horizontaler Abstand zwischen den Haken 30 mm - vertikaler Abstand zwischen den Haken 70 mm
Key hooks 160
Door hinge DIN right
Door thickness 84 mm
Door opening angle 180 °
Door clearance dimensions (HxW) 288 × 324 mm
Anti-burglary protection standard EN 1143-1
Security level classification Resistance grade I
acc. to EN 1143-1
Certification body ECB-S
Insurance cover (commercial use) €20,000.00
Lacquering/Colour RAL 7024 Graphitgrau, RAL 7035 Lichtgrau
Pre-drilled floor anchors Yes
Pre-drilled wall anchors Yes
Corpus thickness 25 mm
Details on the corpus mehrwandig, 25 mm stark
Lock features 4-seitig sperrend; dreiseitig über Riegelwerk. Scharnierseite zusätzlich gesichert durch ein Hintergreifprofil
Lock Doppelbart-Schloss mit 3 Schlüsseln
HTSK1000 – series
Select the version you would like
Item no Overall dimensions Weight Key hooks
  HTSK1000-01 440 × 330 × 165 mm 30 kg 5
  HTSK1000-02 400 × 400 × 270 mm 42 kg 64
  HTSK1000-03 400 × 420 × 420 mm 67 kg 160
  HTSK1000-04 400 × 420 × 420 mm 67 kg 72
  HTSK1000-05 500 × 500 × 420 mm 88 kg 280
  HTSK1000-06 500 × 500 × 420 mm 88 kg 144
  HTSK1000-07 650 × 500 × 420 mm 107 kg 440
  HTSK1000-08 650 × 500 × 420 mm 102 kg 280
  HTSK1000-09 650 × 500 × 420 mm 107 kg 192
  HTSK1000-10 800 × 500 × 420 mm 117 kg 280
  HTSK1000-11 800 × 500 × 420 mm 122 kg 440
  HTSK1000-12 800 × 500 × 420 mm 130 kg 600
  HTSK1000-13 1000 × 500 × 420 mm 159 kg 720
  HTSK1000-14 1000 × 500 × 420 mm 142 kg 440
  HTSK1000-15 1000 × 500 × 420 mm 137 kg 280
  HTSK1000-16 1000 × 500 × 420 mm 150 kg 600
  HTSK1000-17 1150 × 500 × 420 mm 179 kg 880
  HTSK1000-18 1150 × 500 × 420 mm 157 kg 440
  HTSK1000-19 1150 × 500 × 420 mm 152 kg 280
  HTSK1000-20 1150 × 500 × 420 mm 169 kg 560
  HTSK1000-21 1150 × 500 × 420 mm 165 kg 600
  HTSK1000-22 1300 × 500 × 420 mm 194 kg 880
  HTSK1000-23 1300 × 500 × 420 mm 172 kg 440
  HTSK1000-24 1300 × 500 × 420 mm 167 kg 280
  HTSK1000-25 1300 × 500 × 420 mm 184 kg 560
  HTSK1000-26 1300 × 500 × 420 mm 202 kg 1040
