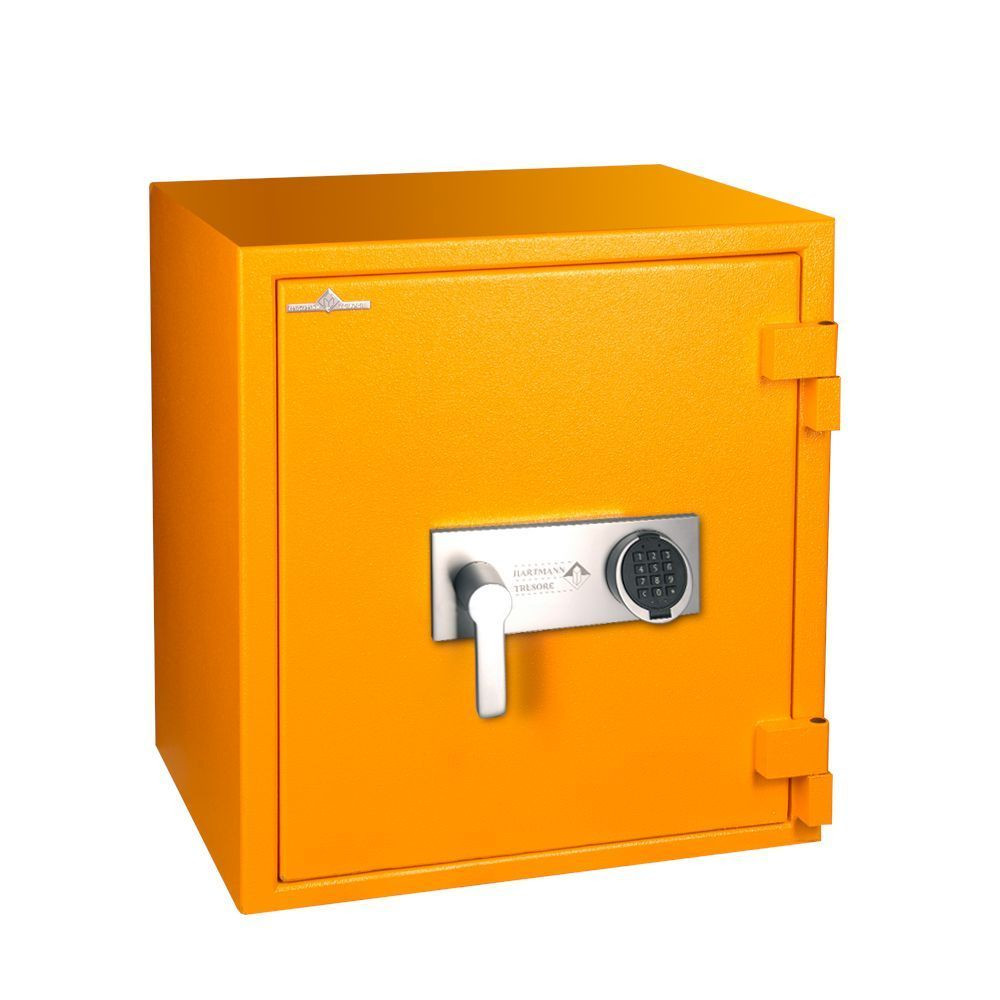

Your chosen product may vary from the image shown depending on the safe and fittings you have selected.

Fire protection
60
Minutes
    D 109
    D 109-03 FIREPROOF ARMOURED HARTMANN
    D 109-03 FIREPROOF ARMOURED HARTMANN
    D 109
    D 109
    D 109

    D 109-03 FIREPROOF ARMOURED HARTMANN

    Burglar- and fire-proof safe

    Overall dimensions: 615 × 589 × 471 mm
    Folder: 5
    Security level classification: Resistance grade I
    acc. to EN 1143-1
    Insurance cover (private use): €65,000.00
    Insurance cover (commercial use): €20,000.00
    Fire protection: 60 Min.

    Information on the lock types

    Thank you for your enquiry!

    Please leave your phone number for possible questions.

    Kind regards
    Yours HARTMANN TRESORE-Team

    Product details D 109-03
    Overall dimensions 615 × 589 × 471 mm
    Internal dimensions 514 × 477 × 329 mm
    Weight 170 kg
    Volume 81 l
    Shelves 2
    Folder 5
    Door hinge DIN right
    Door thickness 105 mm
    Door opening angle 180 °
    Door clearance dimensions (HxW) 499 × 454 mm
    Protruding hinges/door fittings 60 mm
    Anti-burglary protection standard EN 1143-1
    Security level classification Resistance grade I
    acc. to EN 1143-1
    Certification body VdS
    Insurance cover (private use) €65,000.00
    Insurance cover (commercial use) €20,000.00
    Fire protection 60 Min.
    Fire safety class S 60 P
    Fire protection standard EN 1047-1
    Lock Double-bit security lock (incl. 2 keys)
    Type of lock Double bit
    Lacquering/Colour RAL 7035 Light grey
    Pre-drilled floor anchors Yes
    Details on the corpus Multi-walled corpus and door with high-strength special concrete filling in a sandwich-type construction
    Lock features locking mechanism on three sides. Additional security on the hinge side in the form of rigid bolts
    D 109 – series
    Select the version you would like
    Item no Overall dimensions Weight folder
      D 109-01 379 × 589 × 471 mm 128 kg 3
      D 109-02 482 × 589 × 471 mm 144 kg 5
      D 109-03 615 × 589 × 471 mm 170 kg 5
      D 109-04 801 × 589 × 471 mm 215 kg 10
      D 109-05 1137 × 704 × 471 mm 330 kg 21
      D 109-06 1322 × 704 × 471 mm 365 kg 21
      D 109-07 1507 × 704 × 471 mm 395 kg 28
      D 109-09 440 × 463 × 440 mm 115 kg 4
      D 109-10 615 × 463 × 440 mm 145 kg 4
      D 109-11 775 × 463 × 440 mm 160 kg 8
      D 109-17 1884 × 886 × 445 mm 553 kg 50
      D 109-18 1884 × 975 × 459 mm 659 kg 55
      D 109-19 1884 × 975 × 559 mm 701 kg 50
